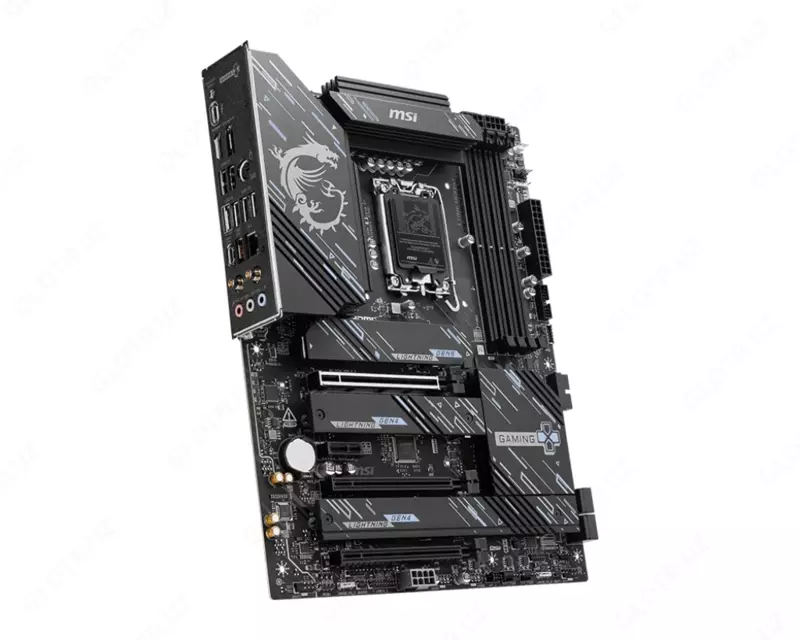

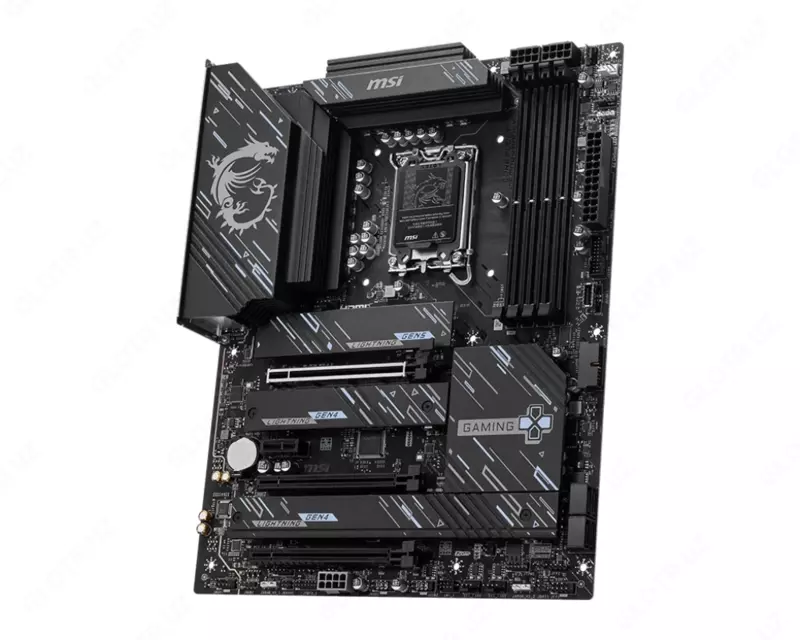

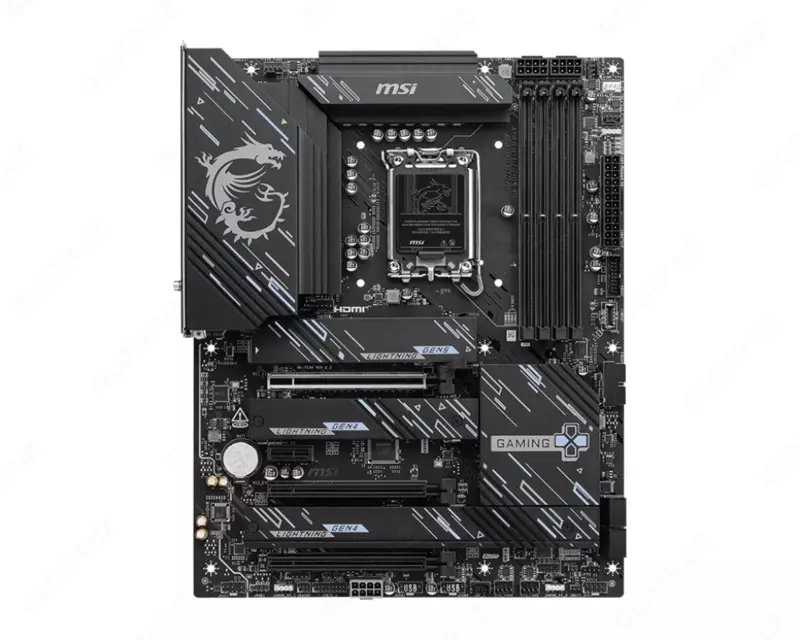

Ana plata MSI Z890 GAMING PLUS WIFI DDR5

Asosiy xususiyatlar

Turi
Ona plata (Motherboard)

Model
MSI Z890 GAMING PLUS WIFI

Chiqarilgan yili
2024

Form-faktor va o‘lchamlar

Form-faktor
Standard-ATX

Balandligi
305 mm

Kengligi
244 mm

Protsessor va chipset

Soket
LGA 1851

Chipset
Intel Z890

Mos protsessorlar
Intel Arrow Lake

Operativ xotira

Qo‘llab-quvvatlanadigan xotira turi
DDR5

Xotira form-faktori
DIMM

Xotira slotlari soni
4 ta

Xotira kanallari soni
2 ta

Maksimal xotira hajmi
256 GB

Maksimal standart chastota (JEDEC)
6400 MGts

Overclock qilingan xotira chastotalari
6400 MGts, 6600 MGts, 6666 MGts, 6800 MGts, 7000 MGts, 7200 MGts, 7400 MGts, 7600 MGts, 7800 MGts, 7900 MGts, 7950 MGts, 8000 MGts, 8200 MGts, 8266 MGts, 8333 MGts, 8400 MGts, 8600 MGts, 8800 MGts, 8933 MGts, 9066 MGts, 9200 MGts

Kengaytirish slotlari

PCI Express versiyasi
PCIe 5.0

PCIe x16 slotlari

• 1 × PCIe 5.0 (x16 rejimida)

• 2 × PCIe 4.0 (x4 rejimida)

PCIe x1 slotlari
1 ta

SLI / CrossFire qo‘llab-quvvatlashi
Yo‘q

Ma'lumot saqlash qurilmalari

NVMe qo‘llab-quvvatlashi
Bor

M.2 slotlari soni
4 ta

PCIe 5.0 M.2

• 1 × 2260/2280 (PCIe 5.0 x4)

PCIe 4.0 M.2

• 1 × 2242/2260/2280 (PCIe 4.0 x4)

• 1 × 2242/2260/2280 (SATA/PCIe 4.0 x4)

• 1 × 2260/2280/22110 (PCIe 4.0 x4)

SATA portlari
4 ta

RAID rejimlari
0, 1, 5, 10

Orqa panel portlari

USB Type-A

• 1 × USB 3.2 Gen 2

• 2 × USB 3.2 Gen 1

• 4 × USB 2.0

USB Type-C

• 1 × Thunderbolt 4

• 1 × USB 3.2 Gen 2

Video chiqishlari

• 1 × DisplayPort

• 1 × HDMI

• 1 × USB Type-C

RJ-45 tarmoq porti
1 ta

Audio portlari
3 ta analog audio port

Wi-Fi antenna ulagichlari (SMA)
Bor

PS/2 porti
Kombinatsiyalangan

Ichki ulagichlar

Ichki USB

• 2 × USB 2.0 (9 pin)

• 2 × USB 3.2 Gen 1 (19 pin)

Ichki USB Type-C

• 1 × USB 3.2 Gen 2x2

CPU sovutgichi ulagichi

• 1 × 4 pin

Korpus ventilyatorlari

• 5 × 4 pin

Ventilyator/SVO pompa ulagichi

• 1 × 4 pin

ARGB ulagichlari

• 3 × 5V-D-G (3 pin)

RGB ulagichi

• 1 × 12V-G-R-B (4 pin)

Audio

Audio sxemasi
7.1

Audio kodek
Realtek ALC897

Tarmoq

Simli tarmoq tezligi
5 Gbit/s

Tarmoq adapteri
Intel Killer E5000

Wi-Fi standarti
Wi-Fi 7 (802.11be)

Bluetooth versiyasi
5.4

Simsiz adapter
Intel Killer BE1750x

Quvvat va sovutish

Asosiy quvvat ulagichi
24 pin

CPU quvvat ulagichlari
2 × 8 pin

Quvvat fazalari
14+1+1+1

Passiv sovutish

• 4 ta M.2 slot

• VRM zonasi

• Chipset

Faol sovutish
Yo‘q

Qo‘shimcha imkoniyatlar

Flash BIOS tugmasi
Bor

Plata yoritgichi
Yo‘q

PCB qatlamlari soni
6

Xususiyatlari

• Thunderbolt qo‘llovchi kengaytirish kartasi uchun ulagich

• PCIe 8 pin

• CUDIMM xotira qo‘llab-quvvatlashi

Komplektatsiya

• 2 × SATA kabel

• EZ M.2 Clip 2 Remover

• Wi-Fi antennasi

• Hujjatlar

• M.2 uchun mahkamlash to‘plami

Afzalliklari

Intel Z890 chipseti
LGA 1851 soketi (Arrow Lake uchun)
DDR5 xotira 9200 MGts gacha (OC)
PCIe 5.0 videokarta va SSD qo‘llovi
4 ta M.2 slot
Thunderbolt 4 porti
Wi-Fi 7 va Bluetooth 5.4
5 Gbit/s Intel Killer LAN
Kuchli 14+1+1+1 VRM tizimi

Kafolat: 1 yil.
